产品介绍
产品特性
Ø 10Gb/s双向数据通信
Ø 热插拔SFP封装
Ø 低电磁干扰全金属外壳
Ø 低功耗
Ø 紧凑型RJ-45连接器组件
Ø 通过串行总线连接物理层芯片
Ø 支持30米传输距离（Cat 6a或Cat 7）
Ø 符合RoHS标准
工作温度范围：0℃ to 70℃

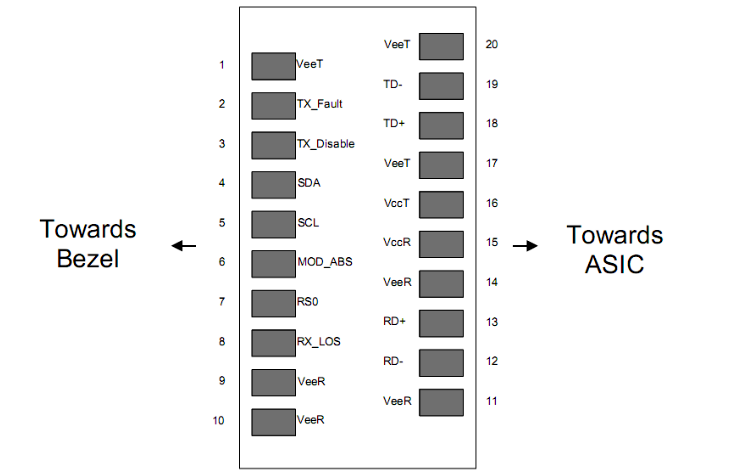

引脚定义
Pin | Signal Name | Description | Plug Seq. | Notes |
1 | VEET | Transmitter Ground | 1 |
|
2 | TX FAULT | Transmitter Fault Indication | 3 | Not supported |
3 | TX DISABLE | Transmitter Disable | 3 |
|
4 | SDA | SDA Serial Data Signal | 3 |
|
5 | SCL | SCL Serial Clock Signal | 3 |
|
6 | MOD_ABS | Module Absent. Grounded within the module | 3 |
|
7 | RS0 | Not Connected | 3 |
|
8 | LOS | Loss of Signal | 3 |
|
9 | VEER | Receiver ground | 1 |
|
10 | VEER | Receiver ground | 1 |
|
11 | VEER | Receiver ground | 1 |
|
12 | RD- | Inv. Received Data Out | 3 |
|
13 | RD+ | Received Data Out | 3 |
|
14 | VEER | Receiver ground | 1 |
|
15 | VCCR | Receiver Power Supply | 2 |
|
16 | VCCT | Transmitter Power Supply | 2 |
|
17 | VEET | Transmitter Ground | 1 |
|
18 | TD+ | Transmit Data In | 3 |
|
19 | TD- | Inv. Transmit Data In | 3 |
|
20 | VEET | Transmitter Ground | 1 |
|
基本参数
General |
Parameter | Symbol | Min | Typ | Max | Units | Notes/Conditions |
Data Rate | BR |
| 10.3 |
| Gb/sec | IEEE 802.3 compatible. |
Cable Length | L |
|
| 30 | m | Category 6a/7 UTP. BER <10-12 |
订购信息
型号/Part Number | Tx_DIS | Link Indicator on Rx_LOS Pin | Temp. |
HD-SFP+/10G-T | Yes | Yes | 0~70°C |
