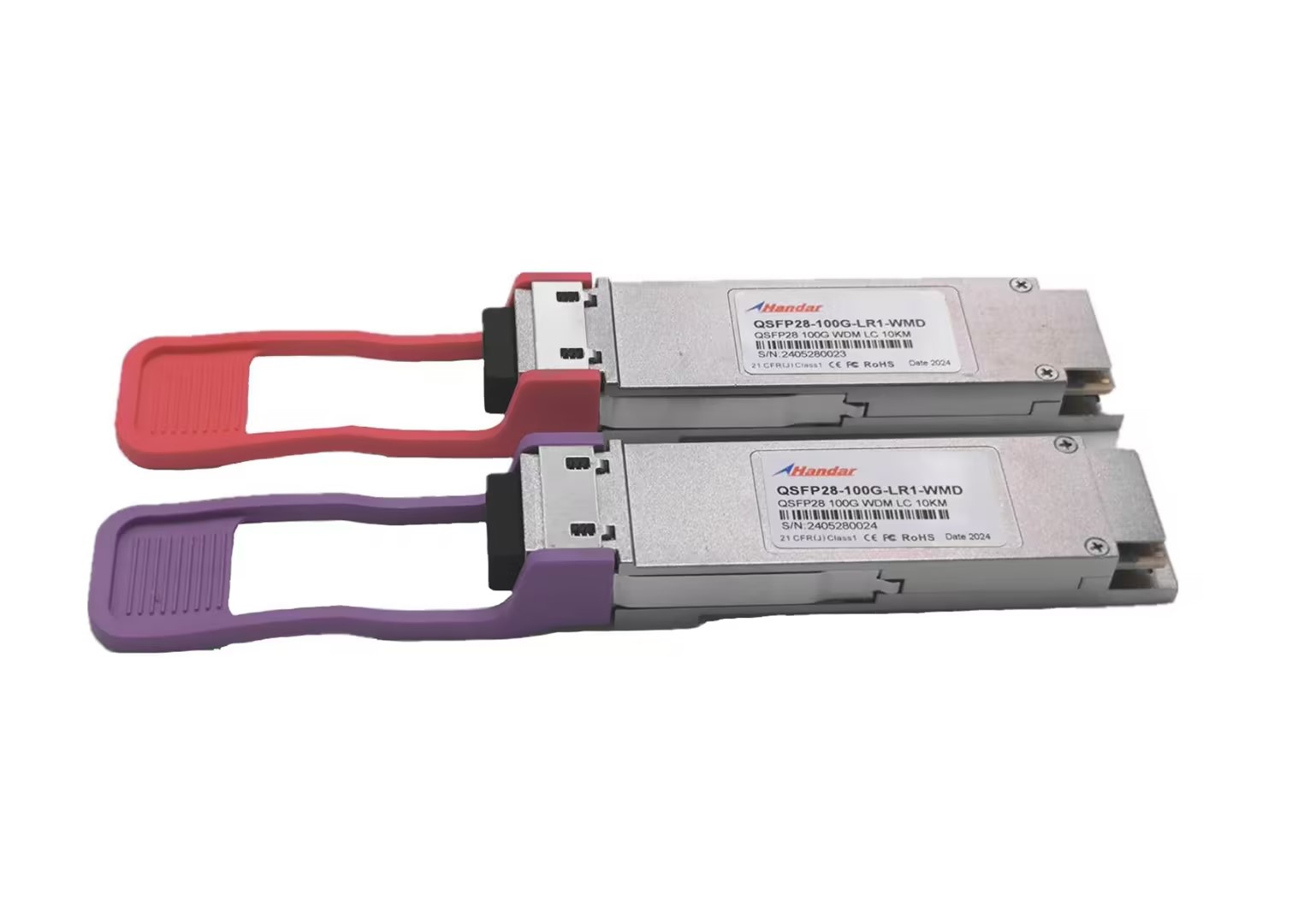

WDM HD-QSFP28-100G-LR1

QSFP28 MSA package with simplex LC connector · Compliant to 100G Lamda MSA 100G-LR1 Optical Specifications · Interoperable with IEEE 802.3cu · Lane signaling rate 53.125GBd with PAM4 · High speed I/O electrical interface · Two Wire Serial Interface ...

全国咨询热线:

0755-86654236 /

联系我们 在线客服

扫一扫关注我们扫一扫关注我们

产品详情

产品介绍

       lQSFP28 MSA package with simplex LC connector

l  Compliant to 100G Lamda MSA 100G-LR1 Optical Specifications

l  Interoperable with IEEE 802.3cu

l  Lane signaling rate 53.125GBd with PAM4

l  High speed I/O electrical interface

l  Two Wire Serial Interface with Digital Diagnostic Monitoring

l  Operating case temperature range 0°C to +70°C

l  Support KP4 FEC inside the module and KP4 FEC shutdown

l  Reaches up to 10km on SMF

l  Maximum power consumption 4.5W

l  3.3V power supply voltage

l  Compliant to RoHS2.0

l  Class 1 Laser
